hivemind webchat

2020-02-26 05:07:56 +00:00
parent 331cea9b9d
commit 6297a808ae
46 changed files with 240 additions and 1006 deletions
--- a/IOS-Bluetooth-MAC-Address.png
+++ b/IOS-Bluetooth-MAC-Address.png
--- a/README.md
+++ b/README.md
@@ -1,190 +1,32 @@
-## Mycroft Webcaht Client and Bluetooth presence service for Mycroft
-Mycroft Webchat Client and Mycroft bluetooth service getting the MAC address of a Bluetooth device.
+# HiveMind - WebChat Terminal

+Mycroft Webchat Terminal - Connecting to the HiveMind with javascript reference implementation

-## Requirements
+This uses tornado to serve the webchat

-This code requires the bluetooth module to be installed. On Mark1, Picroft or Ubuntu/Debian systems, this can usually be done with the following commands:
+![](./webchat.png)

-    sudo apt-get install bluetooth bluez blueman

-    sudo reboot now
+## Usage

-For use with Mark1 or if you have problem with Picroft you need a [USB Bluetooth dongle ](https://www.amazon.com/Bluetooth-Dongle-Adapter-Raspberry-Windows/dp/B073H4GQ9Q/ref=sr_1_8?ie=UTF8&qid=1531953940&sr=8-8&keywords=raspberry+pi+3+usb+bluetooth+dongle) like this
-![Screenshot](usb_donle.jpeg?raw=true)
+change hivemind settings at ```tornado_webchat/static/js/app.js```

+run ```python tornado_webchat/__main__.py```

-## Installation
+Access from web browser http://your_ip_address:9090

-For all installations
+## Privacy

-    cd /opt/mycroft
+Securing tornado is out of scope for this repo, it is currently served by HTTP, you probably want to set up nginx or equivalent with [let's encrypt](https://letsencrypt.org/) certificates

-if the installation is in Mark1 or Picroft
+Hivemind connection is http by default! This is because browsers reject self signed certs, you probably want to use [let's  encrypt](https://letsencrypt.org/) certificates and configure [HiveMind-core](https://github.com/OpenJarbas/HiveMind-core) to use them

-    sudo su mycroft
+Hivemind Encryption is not supported yet (don't set crypto key in [HiveMind-core](https://github.com/OpenJarbas/HiveMind-core))

-For all installations
-
-    git clone https://github.com/jcasoft/external-services.git
-
-if the installation is in Mark1 or Picroft
-
-    exit
-
-For all installations
-
-    sudo chmod -R a+rwx /opt/mycroft/external-services
-
-
-## Installation of USB bluetooth dongle on Mark1 or if you have problem with Picroft
-
-Plug the USB bluetooth dongle
-
-Mark1 command line
-
-        hciconfig -a hci1
-
-        sudo hciconfig hci1 up
-
-        sudo reboot now
-
-
-## Configuration
-
-
-Locate your configuration file and add the section detailed belove
-
-Linux
-
-    nano ~/.mycroft/mycroft.conf
-
-Mark1 or Picroft
-
-    nano /home/pi/.mycroft/mycroft.conf
-
-    and
-
-    sudo su mycroft
-    nano /home/mycroft/.mycroft/mycroft.conf
-    exit
-
-
-Add this section to mycroft.conf
-
-    "Proximity": {
-        "proximity_enabled": true,
-        "proximity_data": [
-            {"bt_id": "00:00:00:00:00:1A","name": "Juan Carlos"},
-            {"bt_id": "00:00:00:00:00:1B","name": "Adriana"},
-            {"bt_id": "00:00:00:00:00:1C","name": "Daniella"},
-            {"bt_id": "00:00:00:00:00:1D","name": "Enzo"},
-            {"bt_id": "00:00:00:00:00:1E","name": "Gianluca"}
-        ]
-    }
-
-
-Fill the bt_id with bluetooth MAC address of your smartphone
-
-![Screenshot](IOS-Bluetooth-MAC-Address.png?raw=true)
-
-## How to start Presence service
-
-Linux
-
-    cd /opt/mycroft/external-services
-    bash start-presence.sh linux
-
-    cd ~/mycroft-core
-    bash start-mycroft.sh debug
-
-
-Mark1 or Picroft
-
-    cd /opt/mycroft/external-services
-    bash start-presence.sh mark1
-    or
-    bash start-presence.sh picroft
-
-
-## How to stop Presence service
-
-Linux, Mark1 and Picroft
-
-    cd /opt/mycroft/external-services
-    bash stop-presence.sh
-
-
-## How to start Webchat service
-
-Linux
-
-    cd /opt/mycroft/external-services
-    bash start-webchat.sh linux
-
-    cd ~/mycroft-core
-    bash start-mycroft.sh debug
-
-
-Mark1 or Picroft
-
-    cd /opt/mycroft/external-services
-    bash start-webchat.sh mark1
-    or
-    bash start-webchat.sh picroft
-
-
-## How to stop Webchat service
-
-Linux, Mark1 and Picroft
-
-    cd /opt/mycroft/external-services
-    bash stop-webchat.sh
-
-
-## How to start both service
-
-Linux
-
-    cd /opt/mycroft/external-services
-    bash start-all.sh linux
-
-    cd ~/mycroft-core
-    bash start-mycroft.sh debug
-
-
-Mark1 or Picroft
-    cd /opt/mycroft/external-services
-
-    bash start-all.sh mark1
-    or
-    bash start-all.sh picroft
-
-
-## How to stop both services
-
-Linux, Mark1 and Picroft
-
-    cd /opt/mycroft/external-services
-    bash stop-all.sh
-
-## How to access Web chat from your browser
-
-    http://localhost:9090
-    or
-    http://MYCROFT-IP-ADDRESS:9090
-
-
-## How to use Webcaht Client and Bluetooth presence service

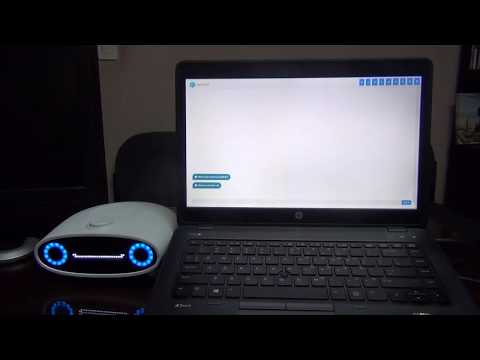

-[![Webcaht Client and Bluetooth presence service](https://img.youtube.com/vi/8cRSmOTRSBI/0.jpg)](https://www.youtube.com/watch?v=8cRSmOTRSBI)
-
-
-## Notes
-Give me a Github star and follow me on YouTube !, to continue developing and improving skills and services in Mycroft
+Basically this is unsafe to run outside your home network with default configurations

 ## Credits

-    Author: jcasoft
-            Juan Carlos Argueta
+Original Webchat UI: [jcasoft](https://github.com/jcasoft/external-services)


--- a/dialog/init.py
+++ b/dialog/init.py
@@ -1,154 +0,0 @@
-# Copyright 2017 Mycroft AI Inc.
-#
-# Licensed under the Apache License, Version 2.0 (the "License");
-# you may not use this file except in compliance with the License.
-# You may obtain a copy of the License at
-#
-#    http://www.apache.org/licenses/LICENSE-2.0
-#
-# Unless required by applicable law or agreed to in writing, software
-# distributed under the License is distributed on an "AS IS" BASIS,
-# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-# See the License for the specific language governing permissions and
-# limitations under the License.
-#
-import random
-from io import open
-# from os.path import join, expanduser
-
-import os
-import re
-
-from mycroft.util.log import LOG
-
-
-__doc__ = """
-
-"""
-
-
-class MustacheDialogRenderer(object):
-    """
-    A dialog template renderer based on the mustache templating language.
-    """
-
-    def __init__(self):
-        self.templates = {}
-
-    def load_template_file(self, template_name, filename):
-        """
-        Load a template by file name into the templates cache.
-
-        Args:
-            template_name (str): a unique identifier for a group of templates
-            filename (str): a fully qualified filename of a mustache template.
-        """
-        with open(filename, 'r') as f:
-            for line in f:
-                template_text = line.strip()
-                if template_name not in self.templates:
-                    self.templates[template_name] = []
-
-                # convert to standard python format string syntax. From
-                # double (or more) '{' followed by any number of whitespace
-                # followed by actual key followed by any number of whitespace
-                # followed by double (or more) '}'
-                template_text = re.sub('\{\{+\s*(.*?)\s*\}\}+', r'{\1}',
-                                       template_text)
-
-                self.templates[template_name].append(template_text)
-
-    def render(self, template_name, context=None, index=None):
-        """
-        Given a template name, pick a template and render it using the context
-
-        Args:
-            template_name (str): the name of a template group.
-            context (dict): dictionary representing values to be rendered
-            index (int): optional, the specific index in the collection of
-                templates
-
-        Returns:
-            str: the rendered string
-
-        Raises:
-            NotImplementedError: if no template can be found identified by
-                template_name
-        """
-        context = context or {}
-        if template_name not in self.templates:
-            raise NotImplementedError("Template not found: %s" % template_name)
-        template_functions = self.templates.get(template_name)
-        if index is None:
-            index = random.randrange(len(template_functions))
-        else:
-            index %= len(template_functions)
-        line = template_functions[index]
-        line = line.format(**context)
-        return line
-
-
-class DialogLoader(object):
-    """
-    Loads a collection of dialog files into a renderer implementation.
-    """
-
-    def __init__(self, renderer_factory=MustacheDialogRenderer):
-        self.__renderer = renderer_factory()
-
-    def load(self, dialog_dir):
-        """
-        Load all dialog files within the specified directory.
-
-        Args:
-            dialog_dir (str): directory that contains dialog files
-
-        Returns:
-            a loaded instance of a dialog renderer
-        """
-        if not os.path.exists(dialog_dir) or not os.path.isdir(dialog_dir):
-            LOG.warning("No dialog found: " + dialog_dir)
-            return self.__renderer
-
-        for f in sorted(
-                filter(lambda x: os.path.isfile(
-                    os.path.join(dialog_dir, x)), os.listdir(dialog_dir))):
-            dialog_entry_name = os.path.splitext(f)[0]
-            self.__renderer.load_template_file(
-                dialog_entry_name, os.path.join(dialog_dir, f))
-
-        return self.__renderer
-
-
-def get(phrase, lang=None, context=None):
-    """
-    Looks up a resource file for the given phrase.  If no file
-    is found, the requested phrase is returned as the string.
-    This will use the default language for translations.
-
-    Args:
-        phrase (str): resource phrase to retrieve/translate
-        lang (str): the language to use
-        context (dict): values to be inserted into the string
-
-    Returns:
-        str: a randomized and/or translated version of the phrase
-    """
-
-    if not lang:
-        from mycroft.configuration import Configuration
-        lang = Configuration.get().get("lang")
-
-    filename = "res/text/" + lang.lower() + "/" + phrase + ".dialog"
-    #template = resolve_resource_file(filename)
-    template = filename
-    if not template:
-        LOG.debug("Resource file not found: " + filename)
-        return phrase
-
-    stache = MustacheDialogRenderer()
-    stache.load_template_file("template", template)
-    if not context:
-        context = {}
-    return stache.render("template", context)
-
--- a/presence.py
+++ b/presence.py
@@ -1,157 +0,0 @@
-#!/usr/bin/env python
-# Developed by: jcasoft
-#               Juan Carlos Argueta
-#
-
-
-import sys
-import os, time, platform
-from datetime import datetime
-import json
-
-import dialog
-from mycroft.configuration import Configuration
-from mycroft.messagebus.client.ws import WebsocketClient
-from mycroft.messagebus.message import Message
-from mycroft.util.log import LOG
-from mycroft.util import create_daemon, wait_for_exit_signal
-
-
-__author__ = 'jcasoft'
-
-
-# ----- Variables for Websocket
-configWS   = Configuration.get().get('websocket')
-host       = configWS.get('host')
-port       = configWS.get('port')
-route      = configWS.get('route')
-ssl        = configWS.get('ssl')
-
-# ----- Variables for Proximity
-configPr   = Configuration.get().get('Proximity')
-proximity_enabled = configPr.get('proximity_enabled')
-proximity_data_array = configPr.get('proximity_data')
-
-# ----- Variables for Language
-lang   = Configuration.get().get("lang")
-
-
-ws = None
-
-scanner_id = os.popen('uname -n').readline().strip()
-
-devices_here = {}
-
-AWAY_HEURISTIC = 10      # *** Can not be less than 10
-
-
-# *** Get all nearby IDs
-def get_bt_ids():
-    sys = platform.system()
-    ids = []
-
-    f = os.popen('hcitool inq --flush')
-    unparsed_data = f.readlines()[1:]
-    for u in unparsed_data:
-        id = u.split()[0]
-        ids.append(id)
-
-    return ids
-
-# *** Scan the area for bluetooth devices. If a new device is seen, send data to messagebus.
-def scan():
-    time = datetime.now()
-    ids = get_bt_ids()
-
-    if (sys.version_info > (3, 0)):
-        # Python 3 code in this block
-        for id in ids:
-            if not id in devices_here:
-                send_to_messagebus({'time': time, 'device_id': id, 'scanner_id': scanner_id, 'event_type': 'ENTER'})
-            devices_here[id] = time
-    else:
-        # Python 2 code in this block
-        for id in ids:
-            if not devices_here.has_key(id):
-                send_to_messagebus({'time': time, 'device_id': id, 'scanner_id': scanner_id, 'event_type': 'ENTER'})
-            devices_here[id] = time
-
-# *** Clean up the list of nearby devices
-def cleanup():
-    del_keys = []
-    time = datetime.now()
-    for device in devices_here:
-        last_seen = devices_here[device]
-        if (time - last_seen).seconds > AWAY_HEURISTIC:
-            del_keys.append(device)
-            send_to_messagebus({'time': time, 'device_id': device, 'scanner_id': scanner_id, 'event_type': 'EXIT'})
-
-    for k in del_keys:
-        del devices_here[k]
-
-def send_to_messagebus(params):
-    LOG.debug('***** %s: device %s at time %s' % (params['event_type'], params['device_id'], params['time']))
-    currentTime = datetime.now()
-    currentTime.hour
-
-    dialog_name = 'greeting afternoon'
-    if params['event_type'] == "ENTER":
-        if currentTime.hour < 12:
-            dialog_name = 'greeting morning'
-        elif 12 <= currentTime.hour < 19:
-            dialog_name = 'greeting afternoon'
-        else:
-            dialog_name = 'greeting night'
-    elif  params['event_type'] == "EXIT":
-        dialog_name = 'bye bye'
-
-    name = ""
-    found = False
-    for x in range(0,len(proximity_data_array)):
-        if ("bt_id",params['device_id']) in proximity_data_array[x].items():
-            name = proximity_data_array[x]["name"]
-            LOG.debug("***** Devide found, Owner " + name)
-            found = True
-            break
-        else:
-            found = False
-
-    if found:
-        msg_data = {'name': name}
-        payload = {'utterance':dialog.get(dialog_name, lang, msg_data)}
-        ws.emit(Message("speak", payload))
-    else:
-        name = ""
-        LOG.debug("***** Devide not found")
-        msg_data = {'name': name}
-        payload = {'utterance':dialog.get(dialog_name, lang, msg_data)}
-        ws.emit(Message("speak", payload))
-
-
-
-def BT_Scanner():
-    LOG.debug("***** Proximity Bluetooth Enabled --> : Scanning Bluetooth devices... ")
-    while True:
-        # continuously scan for new devices
-        scan()
-        # and clean up the list of devices that are present
-        cleanup()
-
-def main():
-    global ws
-    ws = WebsocketClient()
-    Configuration.init(ws)
-
-    create_daemon(ws.run_forever)
-
-    if proximity_enabled:
-        BT_Scanner()
-
-    wait_for_exit_signal()
-
-
-
-if __name__ == '__main__':
-    main()
-
-
--- a/requirements.txt
+++ b/requirements.txt
@@ -0,0 +1 @@
+tornado
--- a/res/text/en-us/bye
+++ b/res/text/en-us/bye
@@ -1,3 +0,0 @@
-Bye bye {{name}}, see you later
-Bye bye {{name}}, nice to see you
-{{name}} hasta la vista baby!
--- a/res/text/en-us/greeting
+++ b/res/text/en-us/greeting
@@ -1,3 +0,0 @@
-Hello {{name}}, how are you
-Hello {{name}}, nice to see you
-
--- a/res/text/en-us/greeting
+++ b/res/text/en-us/greeting
@@ -1,2 +0,0 @@
-Good morning {{name}}, how are you
-Hello {{name}}, Good morning!
--- a/res/text/en-us/greeting
+++ b/res/text/en-us/greeting
@@ -1,3 +0,0 @@
-Good night {{name}}, how was your day?
-Good night {{name}}
-Hello {{name}}, Good night!
--- a/res/text/es-es/bye
+++ b/res/text/es-es/bye
@@ -1,3 +0,0 @@
-Adios{{name}}
-Hasta luego {{name}}
-{{name}}, espero verte pronto
--- a/res/text/es-es/greeting
+++ b/res/text/es-es/greeting
@@ -1,3 +0,0 @@
-Hola {{name}} como estas
-Hola {{name}} que gusto verte
-Hola {{name}} que tal tu día
--- a/res/text/es-es/greeting
+++ b/res/text/es-es/greeting
@@ -1,3 +0,0 @@
-Buenos días {{name}}, como estas?
-Buenos días {{name}}, como te encuentras?
-Hola {{name}}, buenos dias!
--- a/res/text/es-es/greeting
+++ b/res/text/es-es/greeting
@@ -1,3 +0,0 @@
-Buenos noches {{name}}, como estuvo tu día?
-Buenos noches {{name}}, que tal tu día?
-Hola {{name}}, buenas noches!
--- a/start-all.sh
+++ b/start-all.sh
@@ -1,18 +0,0 @@
-#!/bin/bash
-
-if [ "$1" = "mark1" ] || [ "$1" = "picroft" ]
-then
-    echo "Selected Mark1 or Picroft"
-    source /opt/venvs/mycroft-core/bin/activate
-    python /opt/mycroft/external-services/presence.py > presence.log &
-    python /opt/mycroft/external-services/webchat.py > webchat.log &
-elif [ "$1" = "linux" ]
-then
-    echo "Selected mycroft-core"
-    source ~/mycroft-core/.venv/bin/activate
-    python -u /opt/mycroft/external-services/presence.py > presence.log &
-    python -u /opt/mycroft/external-services/webchat.py > webchat.log &
-else
-    echo "Usage: ./start-all.sh mark1, ./start-all.sh picroft or ./start-all.sh linux"
-fi
-
--- a/start-presence.sh
+++ b/start-presence.sh
@@ -1,27 +0,0 @@
-#!/bin/bash
-
-if ! dpkg-query -s bluetooth 1> /dev/null 2>&1 ; then
-    echo "Package wireless-tools is not currently installed."
-    echo "--------------------------------------------------"
-    echo "Install Bluetooth with:  sudo apt-get install bluetooth"
-    echo "Reboot after install"
-    exit 1
-else
-    echo "Package Bluetooth is currently installed."
-fi
-
-
-if [ "$1" = "mark1" ] || [ "$1" = "picroft" ]
-then
-    echo "Selected Mark1 or Picroft"
-    source /opt/venvs/mycroft-core/bin/activate
-    python /opt/mycroft/external-services/presence.py > presence.log &
-elif [ "$1" = "linux" ]
-then
-    echo "Selected mycroft-core"
-    source ~/mycroft-core/.venv/bin/activate
-    python -u /opt/mycroft/external-services/presence.py > presence.log &
-else
-    echo "Usage: ./start-presence.sh mark1, ./start-presence.sh picroft or ./start-presence.sh linux"
-fi
-
--- a/start-webchat.sh
+++ b/start-webchat.sh
@@ -1,16 +0,0 @@
-#!/bin/bash
-
-if [ "$1" = "mark1" ] || [ "$1" = "picroft" ]
-then
-    echo "Selected Mark1 or Picroft"
-    source /opt/venvs/mycroft-core/bin/activate
-    python /opt/mycroft/external-services/webchat.py > webchat.log &
-elif [ "$1" = "linux" ]
-then
-    echo "Selected mycroft-core"
-    source ~/mycroft-core/.venv/bin/activate
-    python -u /opt/mycroft/external-services/webchat.py > webchat.log &
-else
-    echo "Usage: ./start-webchat.sh mark1, ./start-webchat.sh picroft or ./start-webchat.sh linux"
-fi
-
--- a/static/js/app.js
+++ b/static/js/app.js
@@ -1,209 +0,0 @@
-/*
-------------------------------------------------------------
-	Author:	jcasoft	- Juan Carlos Argueta
-	Web Chat Client for Mycroft
-
-	to do:
-		reload or refresh
-		mic_on
-		mic_off
-		mute
-		vol_up
-		vol_down
-		backward
-		forward
-		play
-		pause
-
-------------------------------------------------------------
-*/
-
-var ip = ""
-var por = ""
-
-
-function set_ip(val)
-{
-    ip_alt=val
-    console.log("Local computer IP="+ ip_alt)
-}
-
-function set_port(val)
-{
-    port_alt=val
-    console.log("Socket Port="+ port_alt)
-}
-
-
-
-$(document).ready(function(){
-
-	var received = $('#received');
-
-	var parser = document.createElement('a');
-	parser.href = document.URL;
-	ip = parser.hostname;
-	port = parser.port;
-
-	// Define Socket with local computer IP
-	var socket = new WebSocket("ws://"+ip+":"+port+"/ws");
-	console.log("ws://"+ip+":"+port+"/ws")
-
-
-	socket.onopen = function(){
-	  console.log("connected");
-	  push_response('Web Chat Client by JCASOFT')
-	};
-
-	socket.onmessage = function (message) {
-	  console.log("receiving: " + message.data);
-	  received.append(message.data);
-	  push_response(message.data)
-
-	};
-
-	socket.onclose = function(){
-	  console.log("disconnected");
-	};
-
-	var sendMessage = function(message) {
-	  console.log("sending:" + message.data);
-	  socket.send(message.data);
-	};
-
-
-
-	$('.chat[data-chat=person2]').addClass('active-chat')
-	$('.person[data-chat=person2]').addClass('active')
-	$('.left .person').mousedown(function () {
-	    if ($(this).hasClass('.active')) {
-		return false
-	    }
-	    const findChat = $(this).attr('data-chat')
-	    const personName = $(this).find('.name').text()
-	    $('.right .top .name').html(personName)
-	    $('.chat').removeClass('active-chat')
-	    $('.left .person').removeClass('active')
-	    $(this).addClass('active')
-	    $('.chat[data-chat = ' + findChat + ']').addClass('active-chat')
-	})
-
-
-	function push_statment(msg) {
-	    $('.chat').append('<div class="bubble me"><i class="fa fa-user-circle" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	}
-
-
-	function push_response(msg, callback) {
-	    if (msg == 'stop') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-window-close" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'reload') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-refresh" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'play') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-play" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'pause') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-pause" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'mute') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-volume-off" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'vol_up') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-volume-up" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'vol_down') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-volume-down" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'mic_on') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-microphone" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'mic_off') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-microphone-slash" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'forward') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-forward" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'backward') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-backward" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else if (msg == 'Web Chat Client from JCASOFT') {
-		$('.chat').append('<div class="bubble you loading"><i class="fa fa-thumbs-o-up" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    } else {
-		$('.chat').append('<div class="bubble you"><i class="fa fa-commenting" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
-	    }
-	}
-
-	function get_resp(q, is_response = false) {
-	    let query = q
-	    console.log("*****Utterance to send to main.py server="+query)	// Send to tornado and wait for response
-	    sendMessage({ 'data' : query});
-
-	}
-
-	$('#stop').click(function(){
-	   sendMessage({ 'data' : 'stop'});
-	   push_response('stop')
-	});
-
-	$('#pause').click(function(){
-	   sendMessage({ 'data' : 'pause'});
-	   push_response('pause')
-	});
-
-	$('#play').click(function(){
-	   sendMessage({ 'data' : 'play'});
-	   push_response('play')
-	});
-
-	$('#next_track').click(function(){
-	   sendMessage({ 'data' : 'next track'});
-	   push_response('next track')
-	});
-
-	$('#previous_track').click(function(){
-	   sendMessage({ 'data' : 'previous track'});
-	   push_response('previous track')
-	});
-
-	$('#reduce_volume').click(function(){
-	   sendMessage({ 'data' : 'reduce volume'});
-	   push_response('reduce volume')
-	});
-
-	$('#increase_volume').click(function(){
-	   sendMessage({ 'data' : 'increase volume'});
-	   push_response('increase volume')
-	});
-
-	$('#mute_volume').click(function(){
-	   sendMessage({ 'data' : 'mute volume'});
-	   push_response('mute volume')
-	});
-
-	$('#mic_on').click(function(){
-	   sendMessage({ 'data' : 'mic_on'});
-	   push_response('start listening on Mycroft mic')
-	});
-
-	$('#mic_off').click(function(){
-	   sendMessage({ 'data' : 'mic_off'});
-	   push_response('mic off')
-	});
-
-	$('#reload').click(function(){
-	   sendMessage({ 'data' : 'reload'});
-	   push_response('reload')
-	});
-
-
-	$('#textbox_submit').click(function(){
-		$(this).blur()
-		$('.chat').append('<div class="bubble me"><i class="fa fa-user-circle" aria-hidden="true"></i>&nbsp;<i class="fa fa-volume-up"></i>&nbsp;' + $('#textbox').val() + '</div>')
-		get_resp($('#textbox').val())
-		document.getElementById('textbox').value = ''
-		return false
-	})
-
-
-	$('#textbox').keypress(function (e) {
-	    if (e.which == 13) {
-		$(this).blur()
-		push_statment($('#textbox').val())
-		get_resp($('#textbox').val()+"|SILENT")
-		document.getElementById('textbox').value = ''
-		return false
-	    }
-	})
-
-});
--- a/stop-all.sh
+++ b/stop-all.sh
@@ -1,4 +0,0 @@
-#!/bin/bash
-
-pkill -f "presence.py"
-pkill -f "webchat.py"
--- a/stop-presence.sh
+++ b/stop-presence.sh
@@ -1,3 +0,0 @@
-#!/bin/bash
-
-pkill -f "presence.py"
--- a/stop-webchat.sh
+++ b/stop-webchat.sh
@@ -1,3 +0,0 @@
-#!/bin/bash
-
-pkill -f "webchat.py"
--- a/tornado_webchat/init.py
+++ b/tornado_webchat/init.py
@@ -0,0 +1,50 @@
+import tornado.httpserver
+import tornado.ioloop
+import tornado.web
+import os.path
+import os
+import tornado.websocket
+import tornado.options
+import threading
+import asyncio
+
+
+class MainHandler(tornado.web.RequestHandler):
+    def get(self):
+        self.render('index.html')
+
+
+class StaticFileHandler(tornado.web.RequestHandler):
+    def get(self):
+        self.render('js/app.js')
+
+
+class WebChat(threading.Thread):
+    def __init__(self, port, *args, **kwargs):
+        super().__init__(*args, **kwargs)
+        self.port = port
+
+    def run(self):
+        asyncio.set_event_loop(asyncio.new_event_loop())
+
+        routes = [
+            tornado.web.url(r"/", MainHandler, name="main"),
+            tornado.web.url(r"/static/(.*)", tornado.web.StaticFileHandler,
+                            {'path': './'})
+        ]
+
+        settings = {
+            "debug": True,
+            "template_path": os.path.join(os.path.dirname(__file__),
+                                          "templates"),
+            "static_path": os.path.join(os.path.dirname(__file__), "static"),
+        }
+
+        application = tornado.web.Application(routes, **settings)
+        httpServer = tornado.httpserver.HTTPServer(application)
+        tornado.options.parse_command_line()
+        httpServer.listen(self.port)
+        tornado.ioloop.IOLoop.instance().start()
+
+    def stop(self):
+        tornado.ioloop.IOLoop.instance().stop()
--- a/tornado_webchat/main.py
+++ b/tornado_webchat/main.py
@@ -0,0 +1,45 @@
+import socket
+import sys
+from time import sleep
+from tornado_webchat import WebChat
+
+
+def get_ip():
+    return [l for l in (
+        [ip for ip in socket.gethostbyname_ex(socket.gethostname())[2] if
+         not ip.startswith("127.")][:1], [
+            [(s.connect(('8.8.8.8', 53)), s.getsockname()[0], s.close()) for s
+             in
+             [socket.socket(socket.AF_INET, socket.SOCK_DGRAM)]][0][1]]) if l][
+        0][0]
+
+
+if __name__ == "__main__":
+    # TODO argpase
+
+    import tornado.options
+
+    tornado.options.parse_command_line()
+    port = 9090
+
+    # TODO pass hivemind options
+    # currently defined in tornado_webchat/static/js/app.js
+    webchat = WebChat(port)
+
+    try:
+        webchat.start()
+
+        ip = get_ip()
+        url = "http://" + str(ip) + ":" + str(port)
+        print("*********************************************************")
+        print("*   HiveMind WebChat Client ")
+        print("*")
+        print("*   Access from web browser " + url)
+        print("*********************************************************")
+
+        while True:
+            sleep(5)
+    except KeyboardInterrupt:
+        webchat.stop()
+        webchat.join()
+        sys.exit()
--- a/tornado_webchat/static/css/app.css
+++ b/tornado_webchat/static/css/app.css
--- a/tornado_webchat/static/css/bootstrap.min.css
+++ b/tornado_webchat/static/css/bootstrap.min.css
--- a/tornado_webchat/static/css/bootstrap.min.css.map
+++ b/tornado_webchat/static/css/bootstrap.min.css.map
--- a/tornado_webchat/static/css/font-awesome.css
+++ b/tornado_webchat/static/css/font-awesome.css
--- a/tornado_webchat/static/css/font-awesome.css.map
+++ b/tornado_webchat/static/css/font-awesome.css.map
--- a/tornado_webchat/static/css/todc-bootstrap.min.css
+++ b/tornado_webchat/static/css/todc-bootstrap.min.css
--- a/tornado_webchat/static/css/todc-bootstrap.min.css.map
+++ b/tornado_webchat/static/css/todc-bootstrap.min.css.map
--- a/tornado_webchat/static/fonts/FontAwesome.otf
+++ b/tornado_webchat/static/fonts/FontAwesome.otf
--- a/tornado_webchat/static/fonts/fontawesome-webfont.eot
+++ b/tornado_webchat/static/fonts/fontawesome-webfont.eot
--- a/tornado_webchat/static/fonts/fontawesome-webfont.svg
+++ b/tornado_webchat/static/fonts/fontawesome-webfont.svg
--- a/tornado_webchat/static/fonts/fontawesome-webfont.ttf
+++ b/tornado_webchat/static/fonts/fontawesome-webfont.ttf
--- a/tornado_webchat/static/fonts/fontawesome-webfont.woff
+++ b/tornado_webchat/static/fonts/fontawesome-webfont.woff
--- a/tornado_webchat/static/fonts/fontawesome-webfont.woff2
+++ b/tornado_webchat/static/fonts/fontawesome-webfont.woff2
--- a/tornado_webchat/static/img/Logo2.png
+++ b/tornado_webchat/static/img/Logo2.png
--- a/tornado_webchat/static/img/Logo2_.png
+++ b/tornado_webchat/static/img/Logo2_.png
--- a/tornado_webchat/static/img/blue_logo.png
+++ b/tornado_webchat/static/img/blue_logo.png
--- a/tornado_webchat/static/img/blue_logo_menu.png
+++ b/tornado_webchat/static/img/blue_logo_menu.png
--- a/tornado_webchat/static/js/app.js
+++ b/tornado_webchat/static/js/app.js
@@ -0,0 +1,121 @@
+/*
+-------------------------------------------------------------
+	Author:	jcasoft	- Juan Carlos Argueta
+	Web Chat Client for Mycroft
+
+	Modified for the HiveMind by JarbasAI
+
+-------------------------------------------------------------
+
+*/
+
+
+$(document).ready(function () {
+
+    // HiveMind socket
+    var user = "dummy_user";
+    var key = "dummy_key";
+    let ip = "0.0.0.0";
+    let port = 5678;
+    var authToken = btoa(user + ":" + key);
+
+    document.cookie = 'X-Authorization=' + authToken + '; path=/';
+
+    var ws = new WebSocket('ws://' + ip + ":" + port);
+
+    console.log('ws://' + ip + ":" + port);
+
+
+    ws.onopen = function () {
+        console.log("connected");
+        push_response("Welcome to the HiveMind Webchat client!")
+    };
+
+    ws.onmessage = function (message) {
+        message = JSON.parse(message.data);
+
+        if (message.msg_type === "bus"){
+            let mycroft_message =JSON.parse(message.payload);
+            console.log("Received: " + mycroft_message.type);
+            if (mycroft_message.type === "speak"){
+                let utterance = mycroft_message.data.utterance;
+                push_response(utterance)
+            }
+        }
+
+    };
+
+    ws.onclose = function () {
+        console.log("disconnected");
+    };
+
+    var sendMessage = function (message) {
+        // TODO hivemind message
+        let hive_msg = message
+
+        console.log("sending:" + JSON.stringify(hive_msg));
+        ws.send(JSON.stringify(message));
+    };
+
+
+    $('.chat[data-chat=person2]').addClass('active-chat')
+    $('.person[data-chat=person2]').addClass('active')
+    $('.left .person').mousedown(function () {
+        if ($(this).hasClass('.active')) {
+            return false
+        }
+        const findChat = $(this).attr('data-chat')
+        const personName = $(this).find('.name').text()
+        $('.right .top .name').html(personName)
+        $('.chat').removeClass('active-chat')
+        $('.left .person').removeClass('active')
+        $(this).addClass('active')
+        $('.chat[data-chat = ' + findChat + ']').addClass('active-chat')
+    });
+
+
+    function push_statment(msg) {
+        $('.chat').append('<div class="bubble me"><i class="fa fa-user-circle" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
+    }
+
+
+    function push_response(msg) {
+        $('.chat').append('<div class="bubble you"><i class="fa fa-commenting" aria-hidden="true"></i>&nbsp;&nbsp;' + msg + '</div>')
+
+    }
+
+    function get_resp(q) {
+        let payload = {
+            'type': "recognizer_loop:utterance",
+            "data":{"utterances": [q]},
+            "context": {"source": "WebChat", "destination": "HiveMind", "platform": "JarbasWebchatTerminalV0.1"}
+        };
+        sendMessage({
+            'msg_type': "bus",
+            "payload": payload,
+            "context": {"source": "WebChat", "destination": "HiveMind", "platform": "JarbasWebchatTerminalV0.1"}
+        });
+
+    }
+
+
+    $('#textbox_submit').click(function () {
+        $(this).blur()
+        $('.chat').append('<div class="bubble me"><i class="fa fa-user-circle" aria-hidden="true"></i>&nbsp;<i class="fa fa-volume-up"></i>&nbsp;' + $('#textbox').val() + '</div>')
+        get_resp($('#textbox').val())
+        document.getElementById('textbox').value = ''
+        return false
+    })
+
+
+    $('#textbox').keypress(function (e) {
+        if (e.which == 13) {
+            $(this).blur()
+            push_statment($('#textbox').val())
+            get_resp($('#textbox').val())
+            document.getElementById('textbox').value = ''
+            return false
+        }
+    })
+
+});
--- a/tornado_webchat/static/js/jquery-3.2.1.min.js
+++ b/tornado_webchat/static/js/jquery-3.2.1.min.js
--- a/tornado_webchat/static/js/jquery.min.js
+++ b/tornado_webchat/static/js/jquery.min.js
--- a/tornado_webchat/templates/index.html
+++ b/tornado_webchat/templates/index.html
@@ -3,17 +3,7 @@
 	Author:	jcasoft	- Juan Carlos Argueta
 	Web Chat Client for Mycroft

-	to do:
-		reload or refresh
-		mic_on
-		mic_off
-		mute
-		vol_up
-		vol_down
-		backward
-		forward
-		play
-		pause
+	Modified by JarbasAI

 -------------------------------------------------------------
 -->
@@ -29,10 +19,11 @@
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <meta http-equiv="cleartype" content="on">

-    <link rel="stylesheet" href="/static/css/bootstrap.min.css" type="text/css">
-    <link rel="stylesheet" href="/static/css/todc-bootstrap.min.css" type="text/css">
-    <link rel="stylesheet" href="/static/css/app.css">
-    <link rel="stylesheet" href="/static/css/font-awesome.css">
+    <link rel="stylesheet" href="static/css/bootstrap.min.css" type="text/css">
+    <link rel="stylesheet" href="static/css/todc-bootstrap.min.css"
+          type="text/css">
+    <link rel="stylesheet" href="static/css/app.css">
+    <link rel="stylesheet" href="static/css/font-awesome.css">


    <script type="text/javascript">
@@ -50,27 +41,13 @@
    <div class="mycroft">
      <nav class="navbar navbar-inverse navbar-fixed-top">
          <div class="navbar-header">
-            <a class="navbar-brand" href="#"><img src="/static/img/Logo2.png" alt="Mycroft Logo">
+            <a class="navbar-brand" href="#"><img src="static/img/Logo2.png" alt="Mycroft Logo">
            </a>
          </div>

-	  <ul class="nav nav-pills navbar-right">
-		<li class="active"><a href="#" id="mic_on"><i class="fa fa-microphone"></i></a></li>
-		<li class="active"><a href="#" id="mute_volume"><i class="fa fa-volume-off"></i></a></li>
-		<li class="active"><a href="#" id="increase_volume"><i class="fa fa-volume-up"></i></a></li>
-		<li class="active"><a href="#" id="reduce_volume"><i class="fa fa-volume-down"></i></a></li>
-		<li class="active"><a href="#" id="previous_track"><i class="fa fa-backward"></i></a></li>
-		<li class="active"><a href="#" id="next_track"><i class="fa fa-forward"></i></a></li>
-		<li class="active"><a href="#" id="play"><i class="fa fa-play"></i></a></li>
-		<li class="active"><a href="#" id="pause"><i class="fa fa-pause"></i></a></li>
-		<li class="active"><a href="#" id="stop" style="margin-right:25px;"><i class="fa fa-stop"></i></a></li>
-	  </ul>
-
      </nav>
    </div>

-
-
    <div class="container">
        <div class="right">
            <div class="chat" data-chat="person2">
@@ -91,10 +68,8 @@
    </div>


-    <script src="/static/js/jquery-3.2.1.min.js"></script>
-    <script src="/static/js/app.js"></script>
-    <script type="application/javascript">set_ip("{{ip}}");</script>
-    <script type="application/javascript">set_port("{{port}}");</script>
+    <script src="static/js/jquery-3.2.1.min.js"></script>
+    <script src="static/js/app.js"></script>
    <script type="text/javascript">
        document.getElementById('writer').style.display = 'block';
    </script>
--- a/usb_donle.jpeg
+++ b/usb_donle.jpeg
--- a/webchat.png
+++ b/webchat.png
--- a/webchat.py
+++ b/webchat.py
@@ -1,186 +0,0 @@
-#!/usr/bin/env python
-# Developed by: jcasoft
-#               Juan Carlos Argueta
-#
-
-from mycroft.configuration import ConfigurationManager
-from mycroft.messagebus.service.ws import WebsocketEventHandler
-from mycroft.util import validate_param, create_signal
-
-__author__ = 'jcasoft'
-
-
-from mycroft.messagebus.client.ws import WebsocketClient
-from mycroft.messagebus.message import Message
-from threading import Thread
-
-ws = None
-
-import tornado.httpserver
-import tornado.websocket
-import tornado.ioloop
-import tornado.web
-import tornado.options
-import os.path
-from tornado.options import define, options
-import multiprocessing
-import json
-import time
-import os
-import socket
-from subprocess import check_output
-
-global ip
-ip = [l for l in ([ip for ip in socket.gethostbyname_ex(socket.gethostname())[2] if not ip.startswith("127.")][:1], [[(s.connect(('8.8.8.8', 53)), s.getsockname()[0], s.close()) for s in [socket.socket(socket.AF_INET, socket.SOCK_DGRAM)]][0][1]]) if l][0][0]
-
-clients = []
-
-input_queue = multiprocessing.Queue()
-output_queue = multiprocessing.Queue()
-
-
-class MainHandler(tornado.web.RequestHandler):
-    def get(self):
-        self.render('index.html', ip=ip, port=port)
-
-
-class StaticFileHandler(tornado.web.RequestHandler):
-    def get(self):
-        self.render('js/app.js')
-
-
-class WebSocketHandler(tornado.websocket.WebSocketHandler):
-    def open(self):
-        clients.append(self)
-        self.write_message("Welcome to Mycroft")
-
-    def on_message(self, message):
-        utterance = json.dumps(message)
-        print("*****Utterance : ", utterance)
-
-        if utterance:
-            if utterance == '"mic_on"':
-                create_signal('startListening')
-            else:
-                if "|SILENT" in utterance:
-                    utterance = utterance.split("|")
-                    utterance = utterance[0]
-                    data = {
-                        "lang": lang,
-                        "session": "",
-                        "utterances": [utterance],
-                        "client": "WebChat"}
-                    ws.emit(Message('chat_response', data))
-                    ws.emit(Message('recognizer_loop:utterance', data))
-                else:
-                    data = {
-                        "lang": lang,
-                        "session": "",
-                        "utterances": [utterance]}
-                    ws.emit(Message('recognizer_loop:utterance', data))
-
-                t = Thread(target=self.newThread)
-                t.start()
-
-    def newThread(self):
-        global wait_response
-        global skill_response
-        timeout = 0
-        while wait_response:
-            wait_response = True
-            time.sleep(1)
-            timeout = timeout + 1
-
-        time.sleep(1)
-
-
-        time.sleep(1)
-
-        if len(skill_response) > 0:
-            self.write_message(skill_response)
-
-        skill_response = ""
-        wait_response = True
-
-        timeout = 0
-        while timeout < 5 or wait_response:
-            time.sleep(1)
-            timeout = timeout + 1
-
-        if len(skill_response) > 0:
-            self.write_message(skill_response)
-
-        wait_response = True
-        skill_response = ""
-
-    def on_close(self):
-        clients.remove(self)
-
-
-def connect():
-    ws.run_forever()
-
-
-def handle_speak(event):
-    response = event.data['utterance']
-    global skill_response, wait_response
-    skill_response = ""
-    wait_response = False
-    skill_response = response
-
-
-def main():
-    global skill_response, wait_response, port, lang
-    wait_response = True
-    skill_response = ""
-
-    global ws
-    ws = WebsocketClient()
-    event_thread = Thread(target=connect)
-    event_thread.setDaemon(True)
-    event_thread.start()
-
-    ws.on('speak', handle_speak)
-
-    import tornado.options
-
-    tornado.options.parse_command_line()
-    config = ConfigurationManager.get().get("websocket")
-    lang = ConfigurationManager.get().get("lang")
-
-    port = "9090"
-    url = ("http://" + str(ip) + ":" + str(port))
-    print("*********************************************************")
-    print("*   JCASOFT - Mycroft Web Cliento ")
-    print("*")
-    print("*   Access from web browser " + url)
-    print("*********************************************************")
-
-    routes = [
-        tornado.web.url(r"/", MainHandler, name="main"),
-        tornado.web.url(r"/static/(.*)", tornado.web.StaticFileHandler, {'path': './'}),
-        tornado.web.url(r"/ws", WebSocketHandler)
-    ]
-
-    settings = {
-        "debug": True,
-        "template_path": os.path.join(os.path.dirname(__file__), "templates"),
-        "static_path": os.path.join(os.path.dirname(__file__), "static"),
-    }
-
-    application = tornado.web.Application(routes, **settings)
-    httpServer = tornado.httpserver.HTTPServer(application)
-    tornado.options.parse_command_line()
-    httpServer.listen(port)
-
-    try:
-        tornado.ioloop.IOLoop.instance().start()
-    except KeyboardInterrupt:
-        logger.exception(e)
-        event_thread.exit()
-        tornado.ioloop.IOLoop.instance().stop()
-        sys.exit()
-
-
-if __name__ == "__main__":
-    main()
